BD-420D/520D

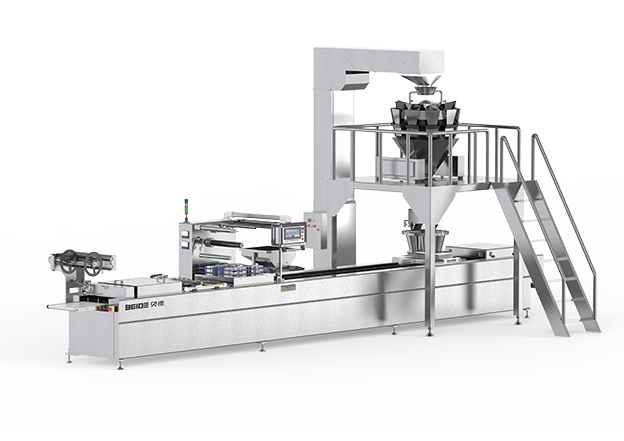

Automatic multi head scale stretch film vacuum packaging machine

Tel：+86-13353371368（Mr.Tan）

BD-420D/520D Automatic multi head scale stretch film vacuum packaging machine

Video

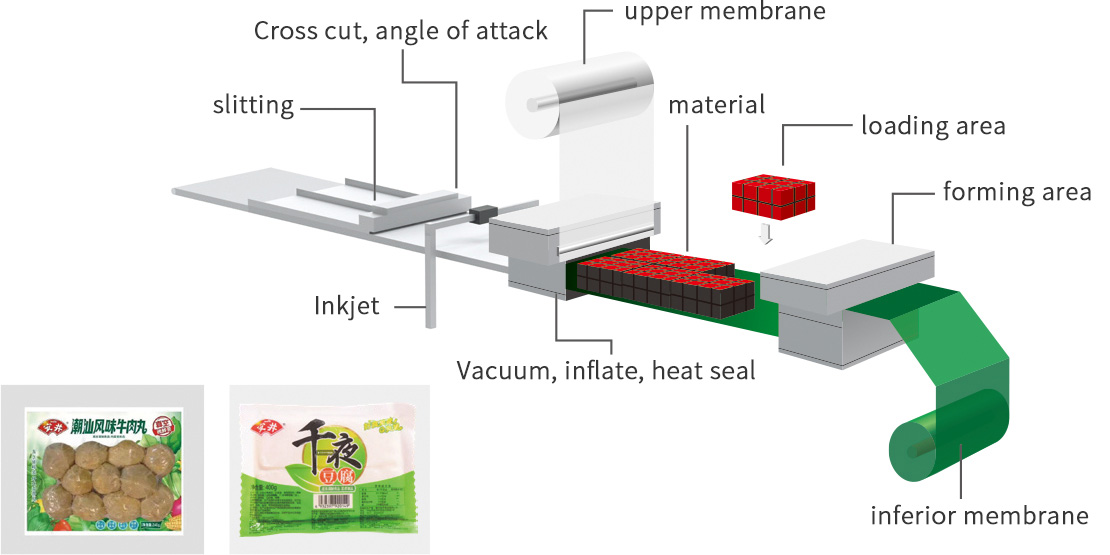

This equipment is upgraded based on bD- 420L /520L stretch flm vacuum packaging machine. This machine can realize automatic blanking, weighing, vacuum heat sealing and cutting without manual work.

Control System

Adopt Japanese Mitsubishi programmable controller control, color touch screen, choose Mitsubishi frequency conversion speed, full The department uses electrical appliances from Japan, Europe, and Taiwan. With complete security protecon measures.

Description

This equipment is upgraded based on bD- 420L /520L stretch flm vacuum packaging machine. This machine can realize automatic blanking, weighing, vacuum heat sealing and cutting without manual work.

Details

Order

Parameter

Film width(upper)	495(395)mm
Film width(under)	523(423)mm
Working room size	400 × (300-400)mm
Air consumption	≥0.6MPa 0.3m3
Vacuum	-0.10MPa
Voltage	380V 50HZ
Total power	13kw
Dimension	6500 × 1170(1070) × 1700mm
The largest tensile strength	80mm
Weight	2200kg
